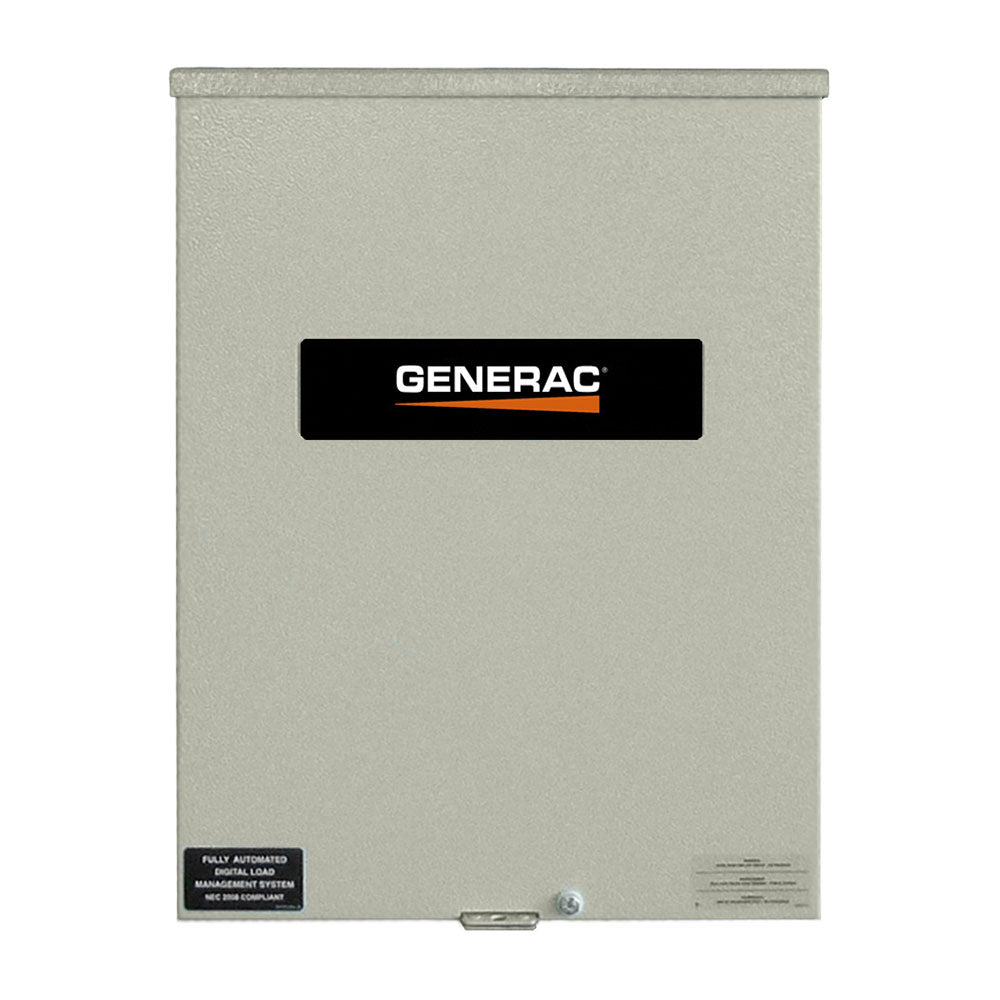

Generac RXSW100A3 240-Volt 100-Amp NEMA 3R Automatic Smart Transfer Switch
$384.45
Skip to product information
Generac RXSW100A3 240-Volt 100-Amp NEMA 3R Automatic Smart Transfer Switch
$384.45
Features
-
Generac 100-Amp Automatic Smart Transfer Switch
- For Generac Evolution Digital Power Management Technology (DPM)
- Allows your generator to work smarter, not harder Manage Up To (4) HVAC 24V Electrical Loads (Built-In - No Add. Hardware)
- Monitors selected circuits and automatically supplies power when needed Smart Management Modules (SMM) (Sold Separately)
- Manage up to (8) more electrical loads - Installation efficient Service Entrance Rated
- Installs between main meter and service panel
- Contains load side and line side disconnecting breaker NEMA 3R Indoor/Outdoor Rated
- Aluminum, wall mountable weather-proof enclosure
- Electrostatically applied and baked powder paint (Gray)
What's in The Box
- Generac 240-Volt 100-Amp NEMA 3R Automatic Smart Transfer Switch - RXSW100A3
- Owner's Manual
Warranty
- 5-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Sku | RXSW100A3 |
| Brand | Generac |
| Voltage | 120/240 |
| Phase | Single-Phase |
| Frequency | 60 Hertz |
| Rated Amps | 100 Amps |
| Enclosure | NEMA 3R |
| Transfer Switch Style | Service Disconnect |
| Max Utility Input | 100 Amps |
| Max Generator Input | 100 Amps |
| Maximum Wattage | 24000 Watts |
| Product Dimensions (LxWxH)(In.) | 20 x 14.6 x 7 In. |
| Shiping Weight (lbs) | 20 lbs |
